A 2005 Honda Element with 93,000 miles broke down near Hood River, about 60 miles east of Portland. The owner had noticed the heater stopped blowing hot air shortly before the engine quit. They were also running low on gas at the time, so a bad fuel pump seemed like the obvious suspect. They had the car towed to us.
What we found

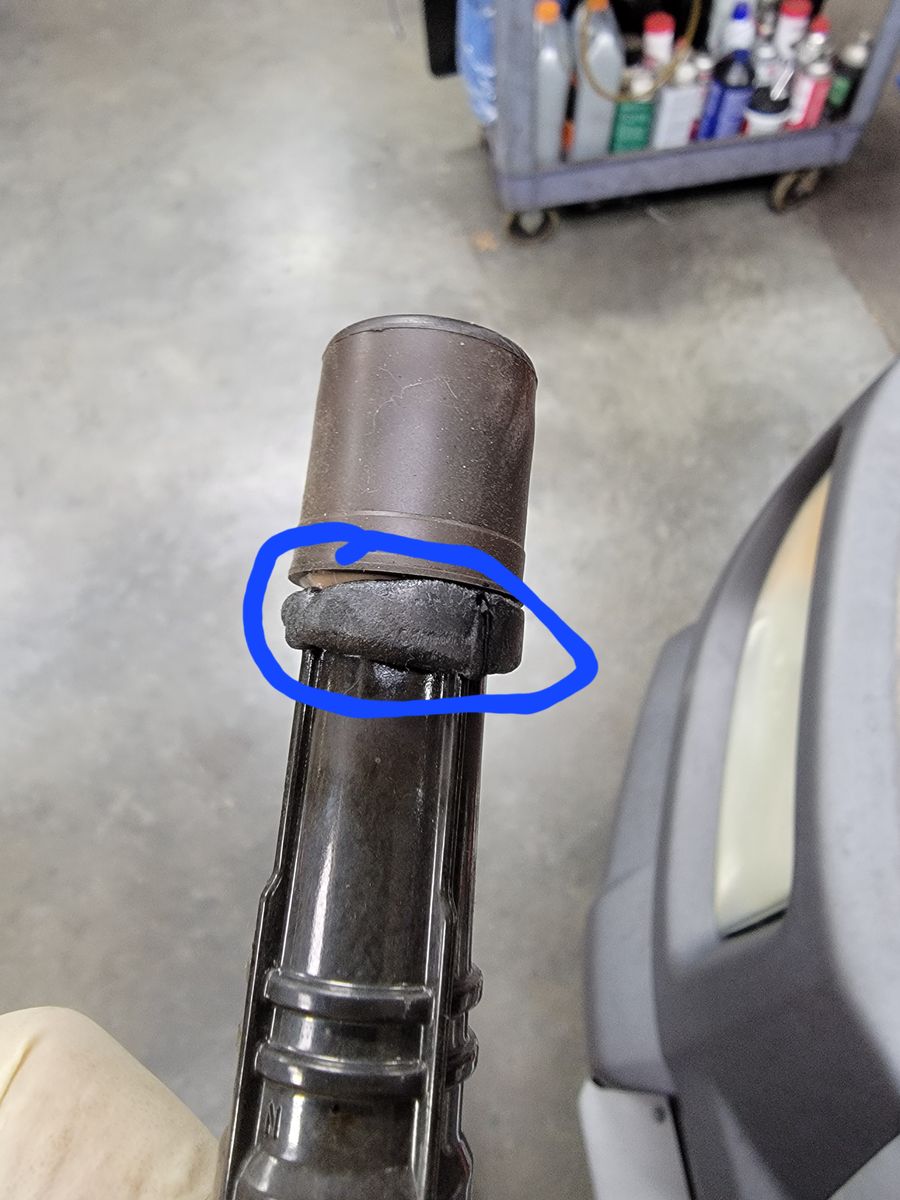

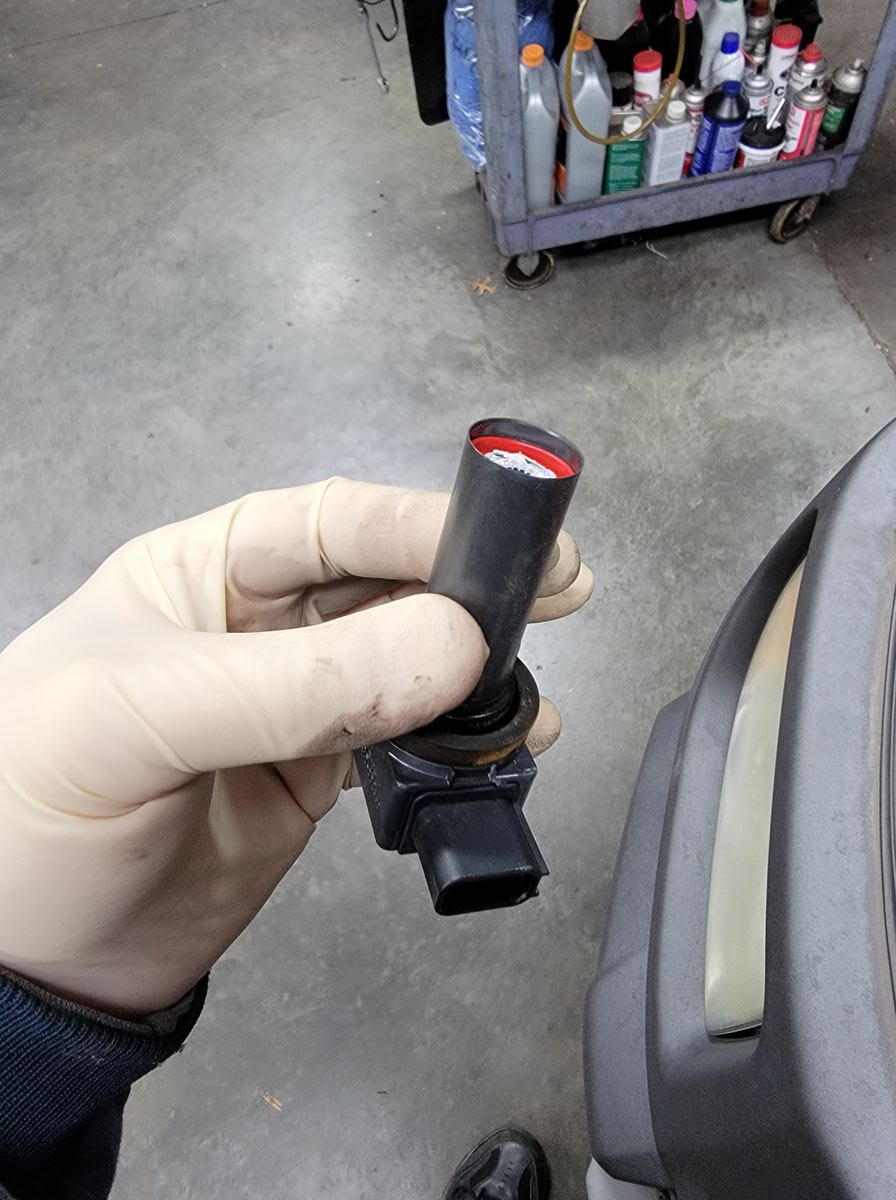

The engine wouldn’t start. It sounded like it had no compression at all. We cranked it in clear flood mode several times with no change, and there was a strong smell of fuel under the hood afterward. We pulled the spark plugs to take a look. The cylinder 3 ignition coil was melted near the bottom and stuck in the head. We had to pry it out. When we tried to remove the cylinder 2 coil, it broke in half. Same melting damage underneath.

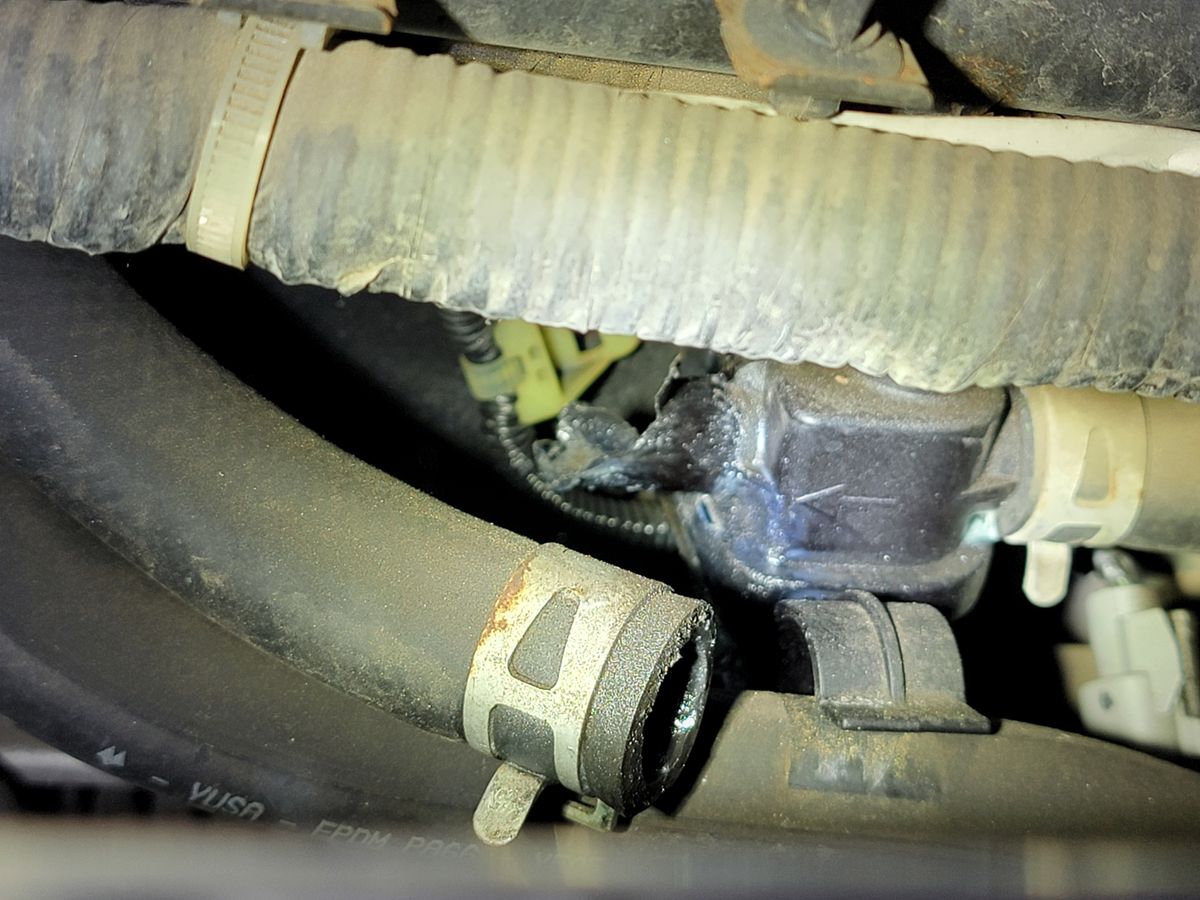

We found coolant pooled around the firewall area. One of the nipples on the heater control valve had either melted or fallen apart entirely. That was the root cause. The valve failed, the cooling system lost its coolant, and the engine overheated hard enough to melt ignition coils and wipe out compression. It wasn’t the fuel pump. It was never the fuel pump.
The little coolant that did remain was extremely dark and contaminated. We recommended replacing the radiator rather than risk it, and flushing the heater core so the old fluid wouldn’t contaminate new parts.
The fix
The engine was done. The owner sourced a JDM replacement from a local supplier, and we swapped it in. While everything was apart, we also replaced the clutch kit and flywheel. On the cooling side, we put in a new heater valve, radiator, and radiator cap, and flushed out the heater core.
During the engine swap, we noticed the clutch slave cylinder was leaking fluid into its boot. The clutch still worked fine, but it was only a matter of time. We replaced the slave cylinder and bled the system while we were in there. After everything was buttoned up, we drove the car 80-plus miles with no issues.
What this means for you
The first sign of trouble here was the heater going cold. That’s your cooling system telling you something is wrong. If your heat stops working while you’re driving, pull over. A cooling system leak can destroy an engine in minutes once the coolant is gone.
This was a roughly $5,700 repair that started with one failed heater valve. The valve itself is a small, inexpensive part. But once it let the coolant drain out, the engine overheated and the damage snowballed from there. Lost cabin heat and a rising temperature gauge are warning signs worth taking seriously. STOP DRIVING!
