Why It Came In
The driver had been to a Honda dealership the week before, where they were told the hybrid battery needed replacement but that the car could still be driven for some time. A week later, the car died on the side of the freeway. The dashboard flickered, the radio cut out, and the 12-volt battery was completely drained. The car came to us on a tow.
What We Found

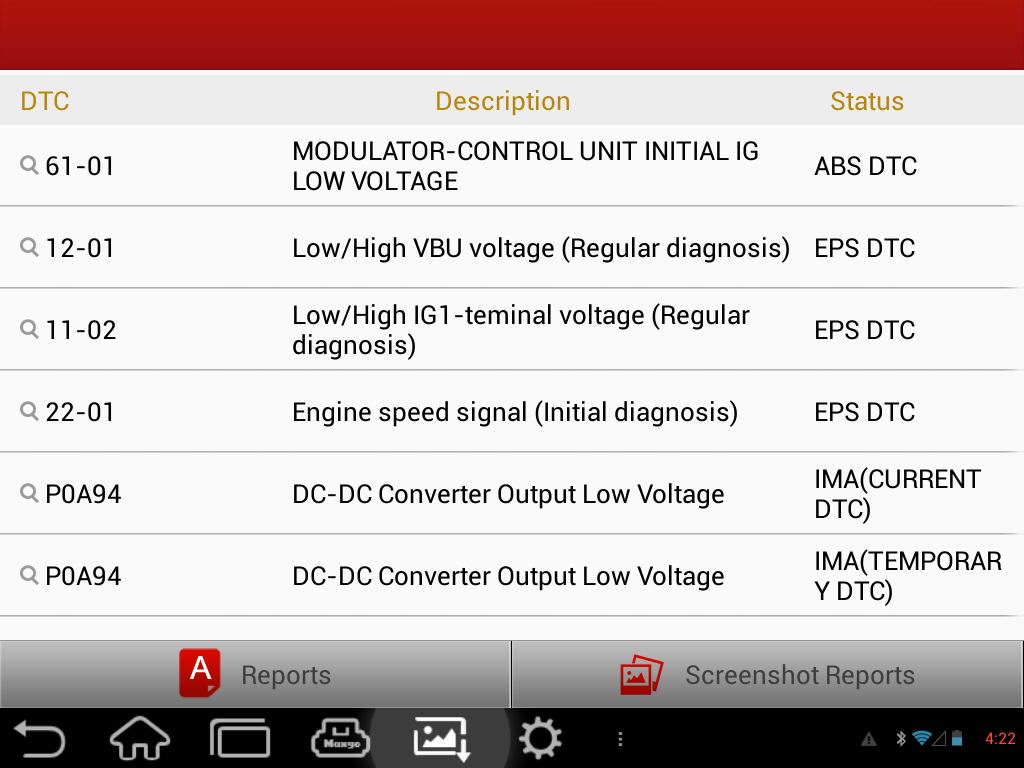

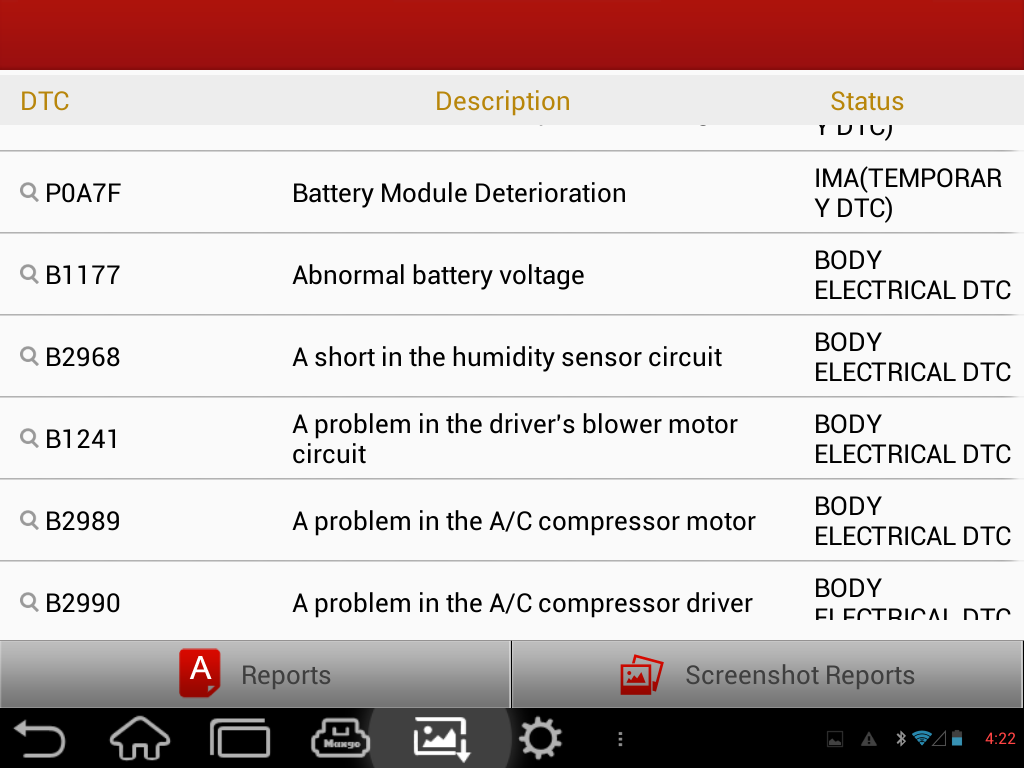

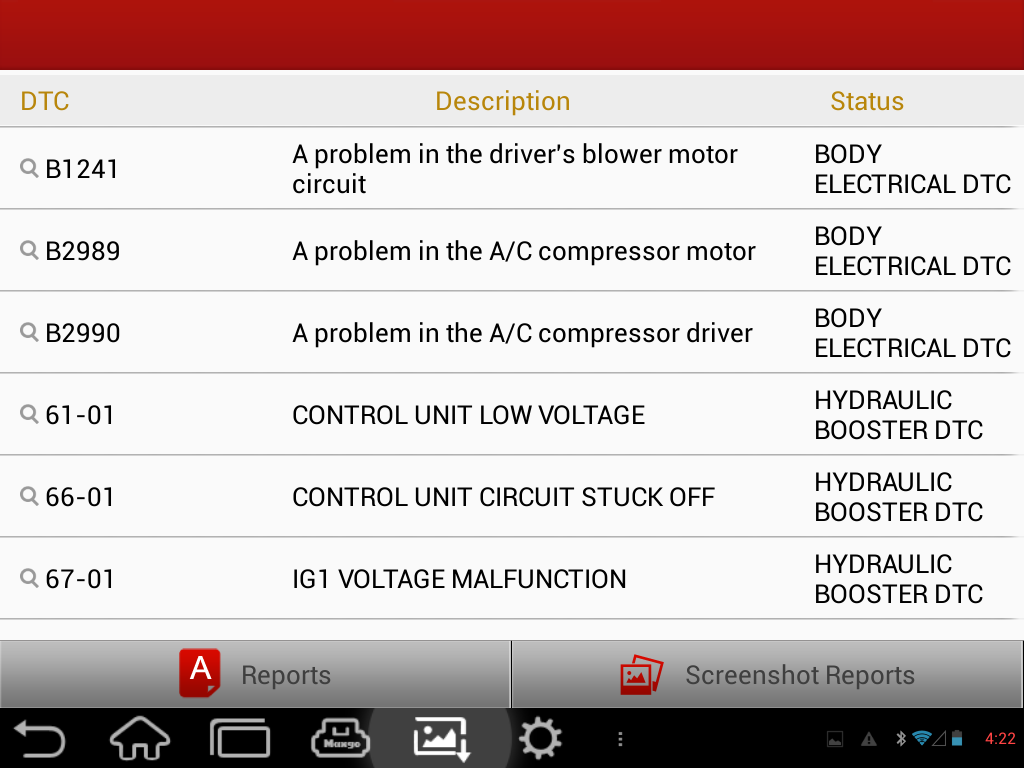

When the car arrived it was totally unresponsive. Our technician connected a jump box just to get it moving into the shop, at which point the battery warning light was on. A scan pulled a significant number of fault codes — all logged, and visible in the attached scan report. The 12-volt battery was then charged overnight to give a clean baseline for the next morning’s testing.

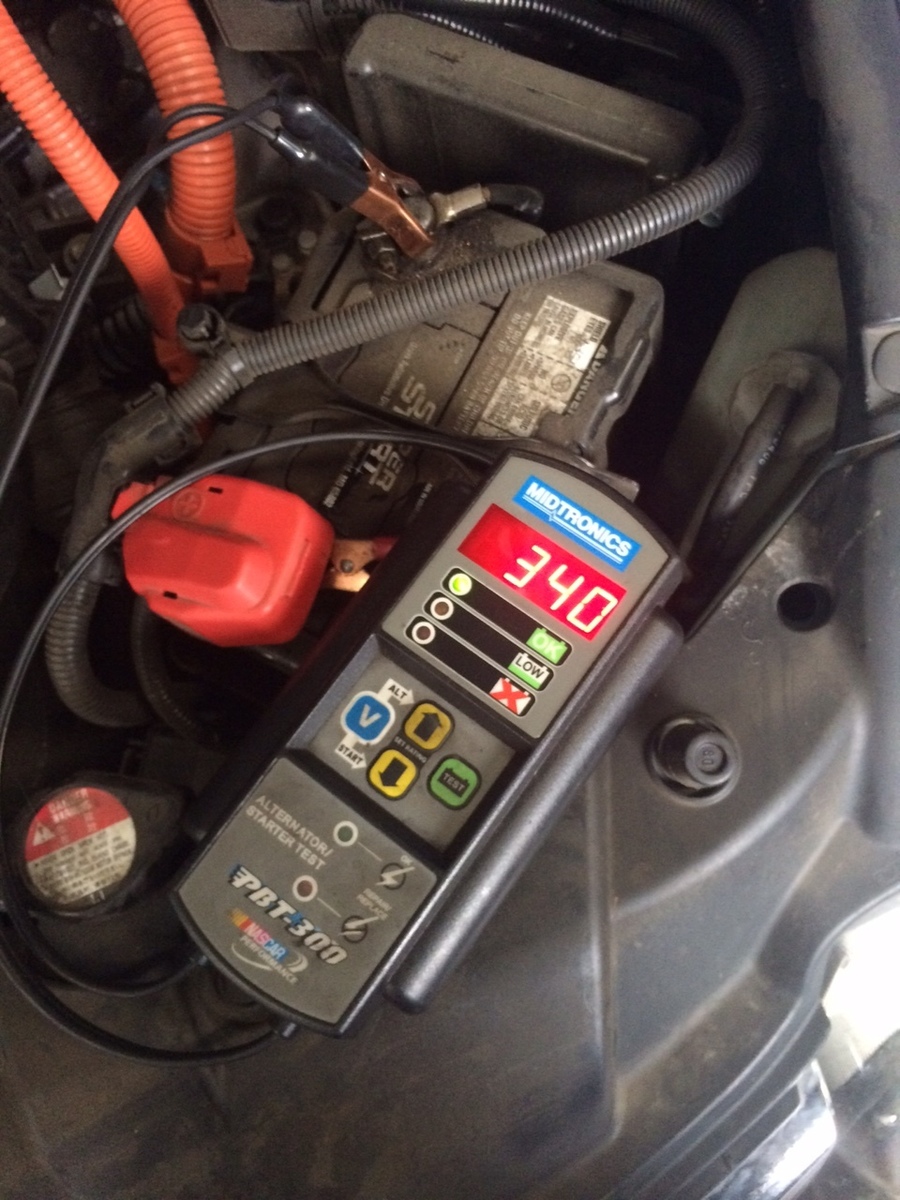

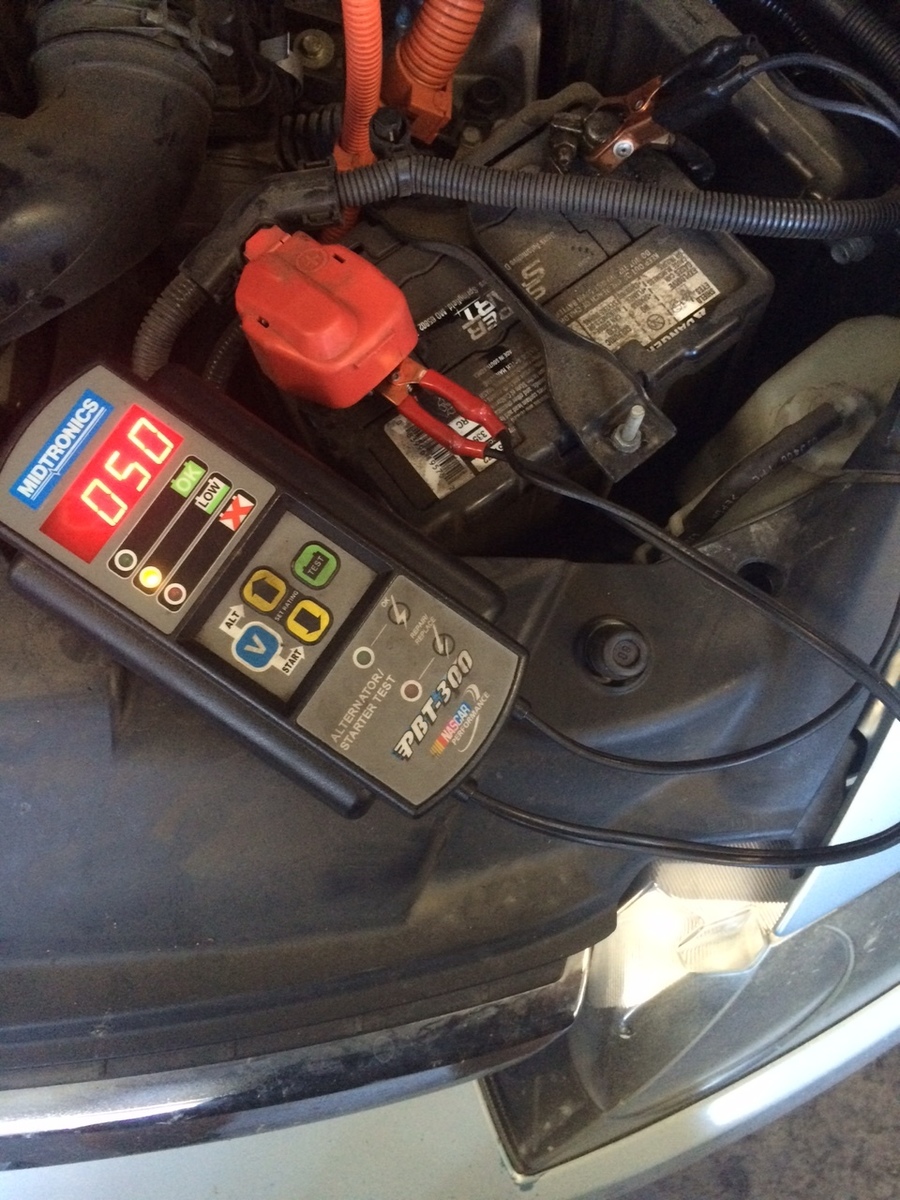

With a full charge in the 12-volt battery, the technician started the car and measured the charging voltage at the 12-volt battery terminals. It read 12.13 volts. A healthy charging system on this car should hold around 13.8 volts. That low reading pointed directly to the converter that steps high-voltage power from the hybrid battery down to the 12-volt system — what Honda calls the DC-to-DC converter. It wasn’t doing its job. The 12-volt battery itself tested good after the overnight charge, though it had been so deeply drained that its long-term condition is worth watching.
The Diagnosis
Two separate failures were at work here, and understanding how they relate to each other matters. The hybrid battery had been weakening — the dealership had already confirmed that. What the dealership’s advice didn’t account for is what happens downstream when a failing hybrid battery stops feeding the converter that keeps the 12-volt system alive.
On a Honda Civic Hybrid, the 12-volt battery doesn’t charge from an alternator the way a conventional car’s does. It relies on the high-voltage hybrid battery system to supply power through that converter. When the hybrid battery deteriorated to the point it could no longer sustain that function, the converter had nothing useful to work with. The 12-volt battery drained, which is why everything electrical — dash, radio, all of it — went dark at once. The converter itself also showed signs of damage from the stress of that situation, which is why the charging voltage was still only 12.13 volts even after the 12-volt battery had been fully recharged.
From the shop floor: When a Honda dealer flags a failing hybrid battery and tells the driver it’s safe to keep driving, that advice doesn’t account for what happens to the 12-volt charging system as the hybrid battery continues to decline. Waiting too long can turn a battery-only replacement into a battery-plus-converter job — and in a worst case, it leaves the driver stranded on the side of a freeway.
The Fix
Our technician replaced both the hybrid battery and the DC-to-DC converter. After the repairs, charging voltage at the 12-volt battery measured 14.2 volts — well within normal range and a clear sign the converter was doing its job again.
During the post-repair test drive, the technician noticed a rough idle that smoothed out as the engine warmed up. This is a known behavior after a hybrid battery replacement on this platform — the car’s control systems need time to relearn idle parameters. The technician let the car sit, then drove it again to confirm the idle settled. It did. The hybrid battery replacement is covered under Atomic Auto’s 4-year warranty.
What This Means for Your Car
If you own a first- or second-generation Honda Civic Hybrid and you’ve been told the hybrid battery is failing, the window to act is shorter than it might seem. The 12-volt system on these cars is entirely dependent on the hybrid battery system for charging. A degraded hybrid battery doesn’t just reduce fuel economy or limit electric assist — it can starve the 12-volt system entirely, which takes out every electrical circuit in the car at once.
The 12-volt battery on this car survived its deep drain and tested within acceptable limits, but a battery that’s been fully discharged has a shortened lifespan. That’s worth keeping in mind at the next service interval. The converter damage in this case was a direct consequence of waiting — it added cost and complexity to what would otherwise have been a straightforward hybrid battery swap.
Frequently Asked Questions
Why did my Civic Hybrid’s dash and radio all die at once?
On the Civic Hybrid, the 12-volt system that powers the dashboard, radio, and all standard electronics doesn’t use a conventional alternator. It gets its charge from the high-voltage hybrid battery system through a converter. When the hybrid battery fails completely, that converter has no power source, and the 12-volt battery drains until everything electrical shuts off.
Can I keep driving a Civic Hybrid after the dealer says the hybrid battery is bad?
Technically yes, for a short time — but the risk isn’t just reduced performance. As the hybrid battery deteriorates, it can stop supporting the converter that keeps your 12-volt battery charged. Once that happens, the car can die without warning, which is what happened here. ‘You can drive it a while’ is not a reliable timeline.
Does replacing the hybrid battery fix the charging problem on a Civic Hybrid?
Not always. In this case, the converter that steps high-voltage power down to the 12-volt system had been damaged by running on a failing hybrid battery. Replacing the hybrid battery alone would not have restored normal charging — the converter also had to be replaced. The charging voltage after both repairs came back to 14.2 volts, confirming both components were needed.
Why was my car idling rough after the hybrid battery was replaced?
After a hybrid battery replacement, the car’s control systems often need time to relearn idle behavior. A rough idle that smooths out as the engine warms up is a common and expected part of that relearning process, not a sign of a separate problem. In this case, the idle settled normally after a short drive cycle.
Will my 12-volt battery be okay after being completely drained?
A full discharge puts stress on a 12-volt battery and shortens its service life, even if it tests within acceptable limits right after being recharged. The battery in this car tested good after an overnight charge, but it’s worth having it rechecked at the next service visit rather than assuming it will perform normally long-term.
How long does a replacement hybrid battery last on a 2006 Civic Hybrid?
Service life varies depending on driving habits and how far the original battery was allowed to degrade before replacement. Replacement hybrid batteries from reputable suppliers typically come with a warranty — the battery replaced in this repair is covered under a 4-year warranty through Atomic Auto.
Photos from This Visit
