A 2010 Prius owner had been fighting a “check hybrid system” message. They’d replaced the hybrid battery, the inverter, both water pumps, the MAF sensor, and the throttle body. The car still wouldn’t work. They brought it to us as a last resort, asking for someone who could actually find the problem.
What we found

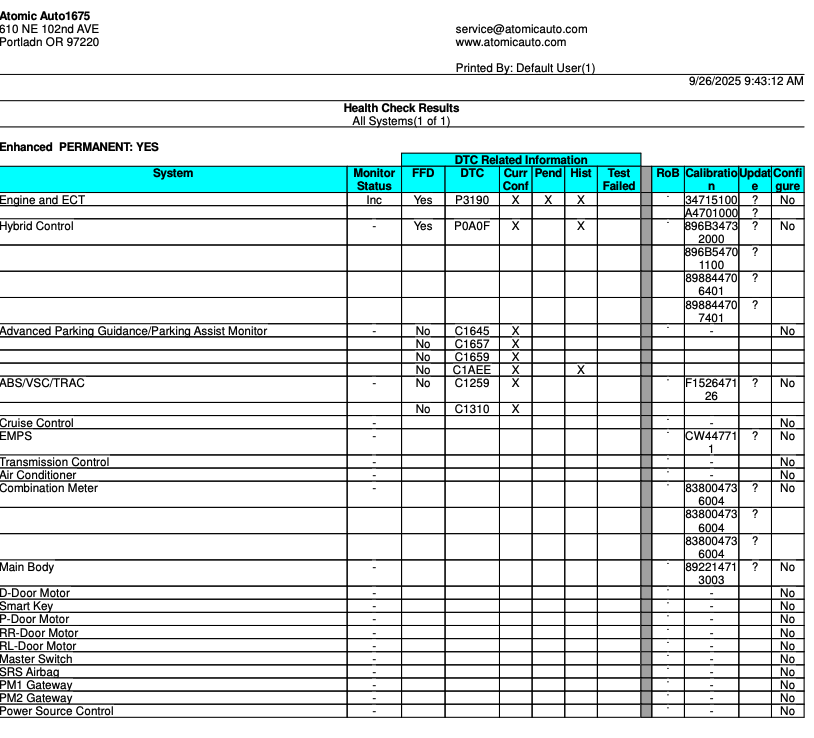

On arrival, the 12v battery terminals were loose. The line from the EVAP valve to the intake was disconnected. We reconnected everything, but the car still wouldn’t start. We were also dealing with a Prius P3190 code during the troubleshooting process.
If you’re facing Prius P3190 issues, careful troubleshooting is key. We checked for fuel pressure, commanded the fuel pump on, and got nothing. No fuel pressu
re, no fuel coming out of the line. The fuel gauge showed one bar.
We adde
d three gallons of gasoline and activated the fuel pump. This time, fuel pressure was normal. We put the car back together and it started right up. It was running, starting, and charging the hybrid battery normally.
The car was out of gas. The fuel gauge was reading one bar, but the tank was empty.
We talked with the customer about the “check hybrid system” message they’d been chasing. It appeared because the engine couldn’t start (no fuel), and when a Prius engine doesn’t start, the hybrid system can’t charge the battery. The computer sees the battery not charging, throws the hybrid warning, and locks out the drivetrain. Every part they replaced was a response to that warning message, but the warning was downstream of the actual problem.
The fix
Three gallons of gas, reconnected the EVAP line, tightened the battery terminals. The car ran fine.
What this means for you
This customer spent thousands of dollars replacing parts that were probably working fine. The hybrid battery, inverter, water pumps, MAF sensor, and throttle body were all replaced chasing a “check hybrid system” message that was caused by an empty fuel tank.
It’s a painful story, but it happens more than you’d think. The Prius fuel gauge is notoriously inaccurate at the bottom of the range. One bar doesn’t always mean there’s fuel left. And each time they worked on the car, things got loosened or disconnected (battery terminals, EVAP line), which added more confusion to an already frustrating situation.
Before replacing expensive hybrid components, have a qualified technician diagnose the actual problem. A fault code is an indicator, not a parts list. In this case, a proper diagnosis would have found the real issue in minutes — and saved thousands of dollars.
